the main purpose of d-production is to offer a cost-efficient real-time monitoring of your production lines.  Coming from a background of a fast growing mid-sized production company we often found us in the situation that a single production manager could not have a real-time overview of all lines and all occurring problems which might hold production. Even with additional staff, the problem rarely changed. Therefore, we at d-automation developed a simple, easy to use real-time monitoring system - d-production.

These days everybody speaks about Industrie 4.0, predictive maintenance and artificial intelligence. But most of the solutions are very complicated or expensive.
Our solution to get your lines digitalized is simple and cost-efficient. We will equip your production lines with a small unit - which measures about 13x13x8.5cm. This box brings predictive maintenance with artificial intelligence, KPI logging and measures the output rate of good and bad parts and sent all to a database. The same unit scans the RFID-Tags or your employees, so you know how many people are working on your lines.

A real-time cost calculation and cost matching feature are already built-in so you and your controlling team are in a position as never before to eliminate negative factors and processes in no time.

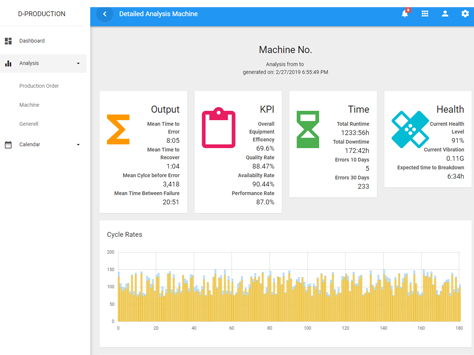

Predictive maintenance evaluates the condition of your production lines by continuous equipment condition monitoring. Therefore, you can perform maintenance at a scheduled point in time when the maintenance activity is most cost-effective and before the equipment loses performance within a threshold. d-production inspections are performed while your equipment is in full-service, thereby you do not have any disruptions of normal system operations. Adoption of predictive maintenance results in substantial cost savings and higher system reliability.

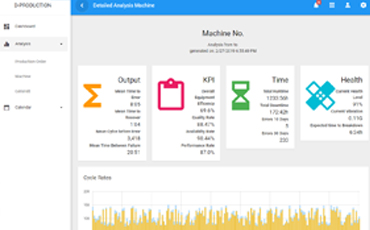

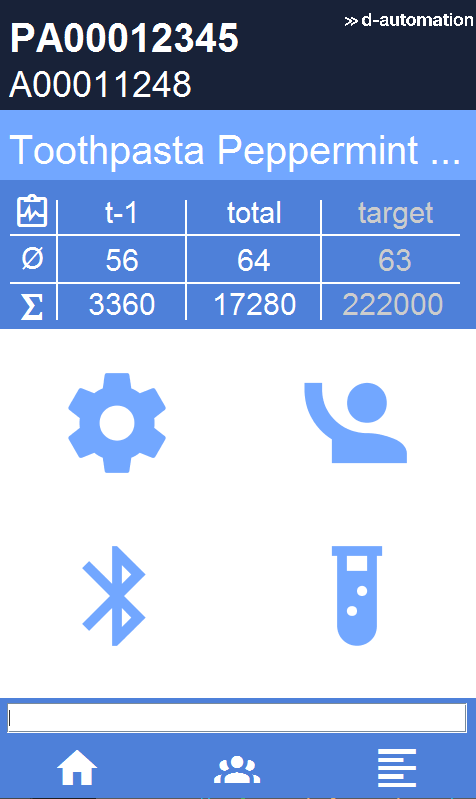

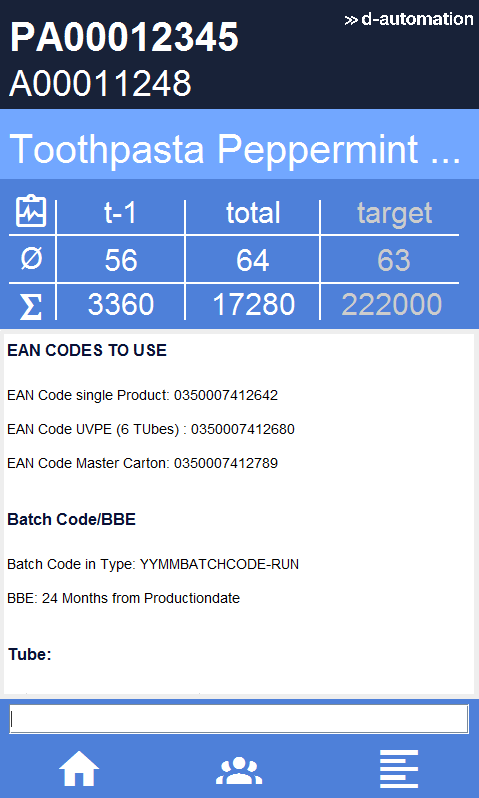

With the possibility to add a standard screen to our device, you have an overview at the lines itself of the current health level, output rate, historical output rates, material uses, employees logged to the line, special instructions to the production order and the quantity finished.

An increased efficiency of your line up to 25% is achieved because of a drastic reduction of unplanned downtimes. By measuring the output rates constantly critical points and processes slowing down your lines frequently can be identified as easy as never before.

With d-production, we give you all the tools you need to get your production paperless.



Two small sensors are put onto your line. These Sensors measure the health of your line, the current output rate, and further details. All data is analyzed within the embedded chipset and sent to a Database-Server.

The unit is also equipped with an RFID-Tag Reader and an HDMI Output.

User authentification is made by individual RFID-Tags for each user.

• PREDICTIVE MAINTAINANCE

• Health indicator of your lines

• continuous equipment condition monitoring

• constant KPI Logging

• real-time output rate of all your lines

• Easy to handle

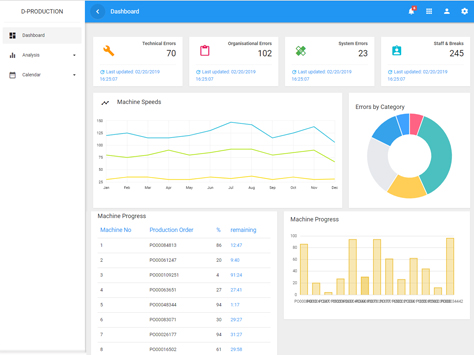

• Centralized data management

• real-time cost matching

• overview of the current progress each line

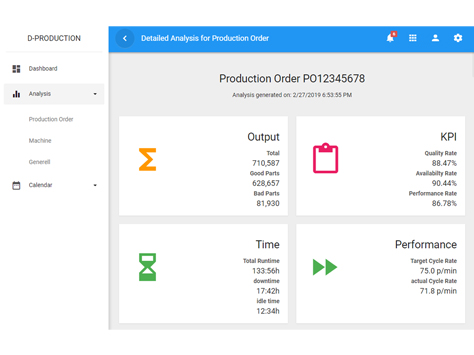

• detailed analysis of all your lines
• easy to understand user interfaces
• Minimized operative overheads (administration and documentation)
• Accelerated material and data flow

• digitalize your production easily

  - no costly modification of your lines to get them to the 21st Centuary
• no limitation in amounts of lines

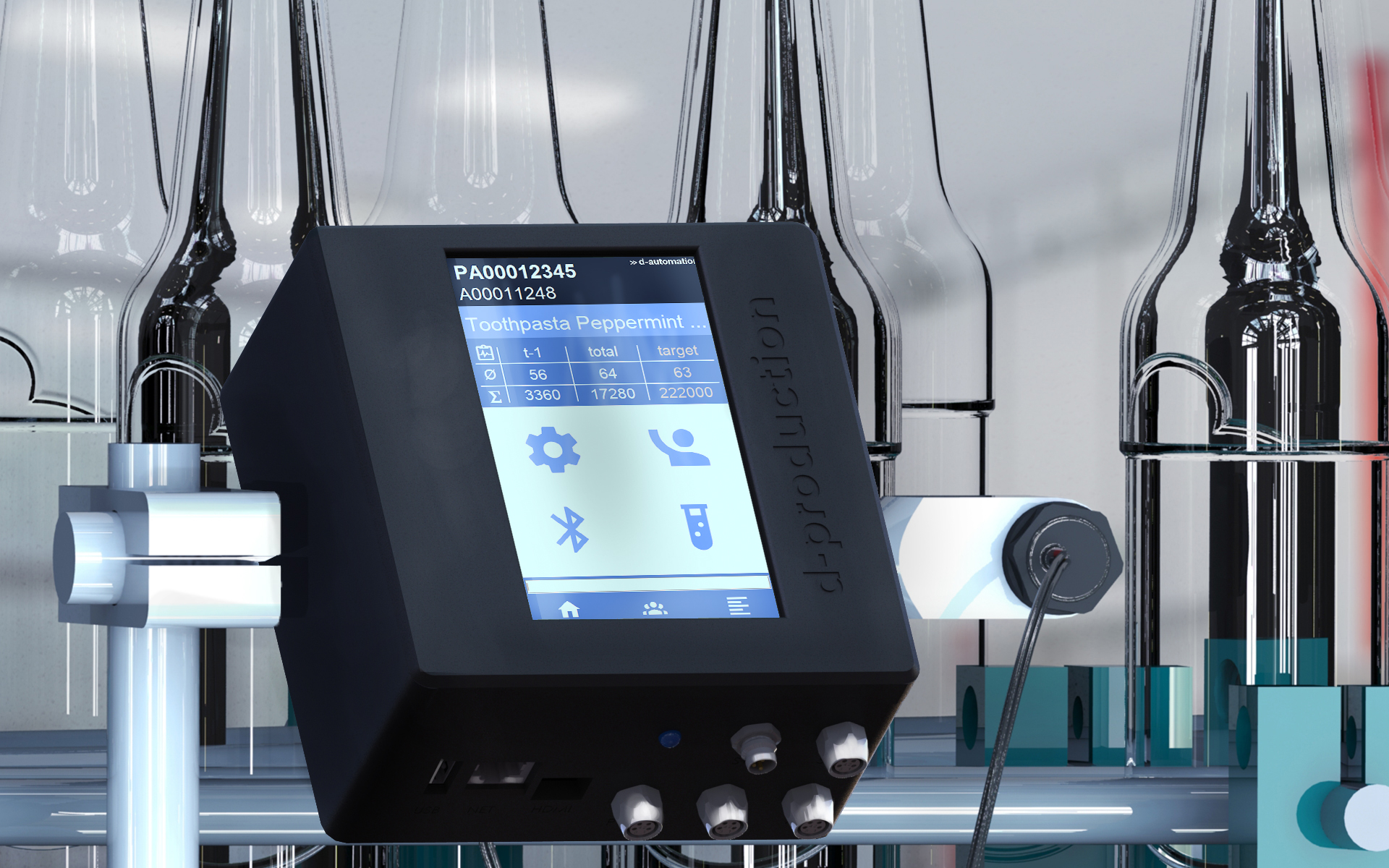

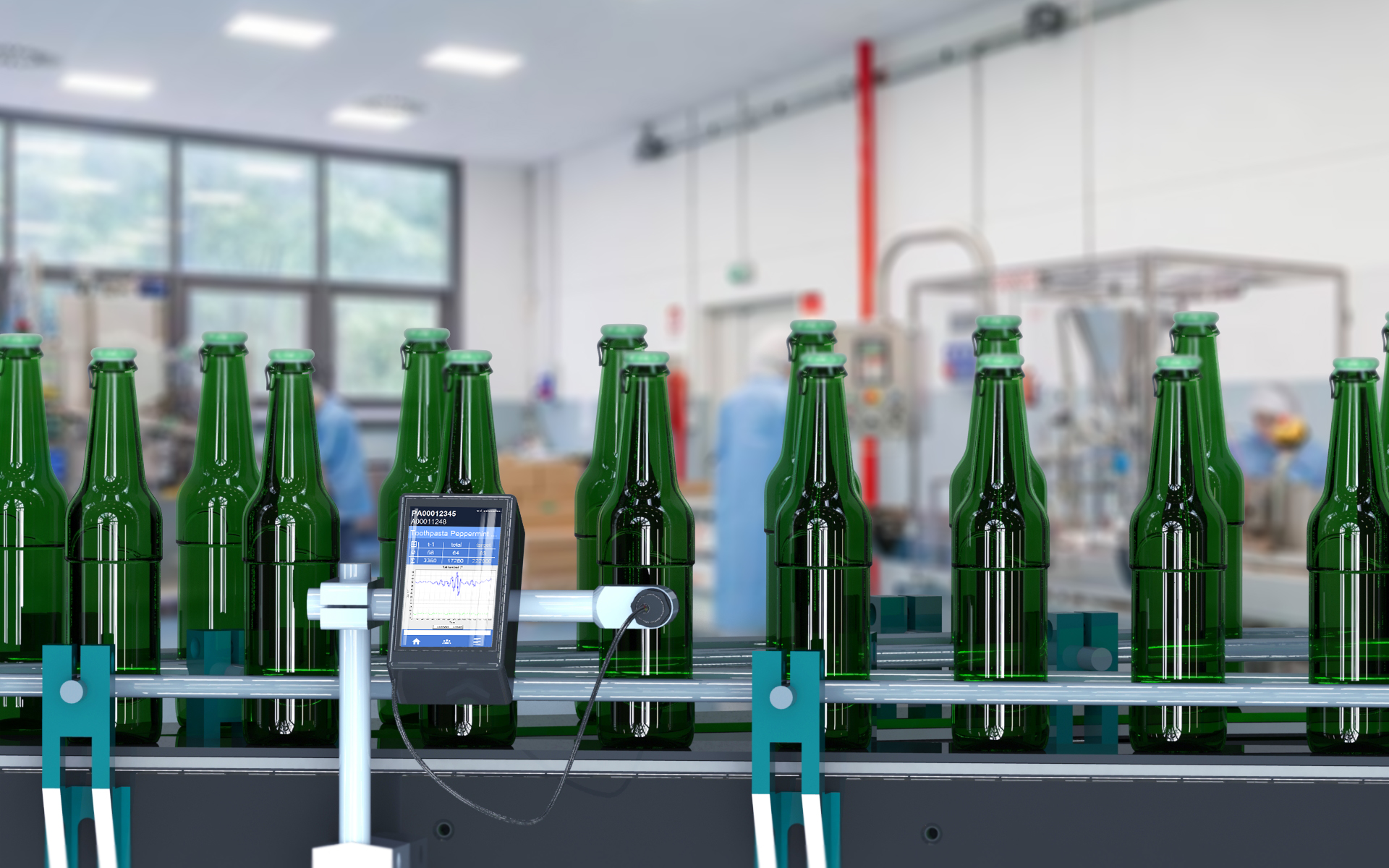

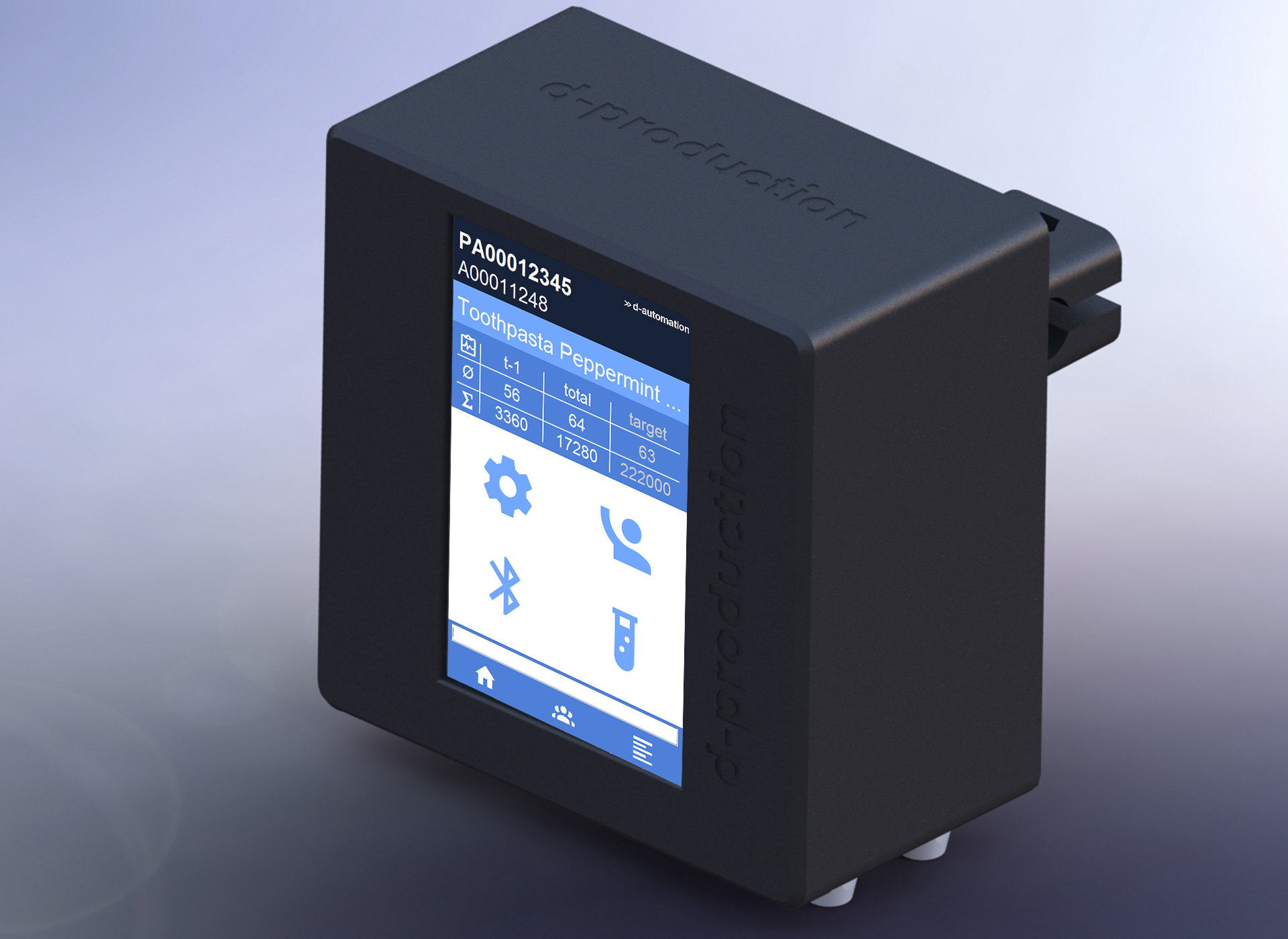

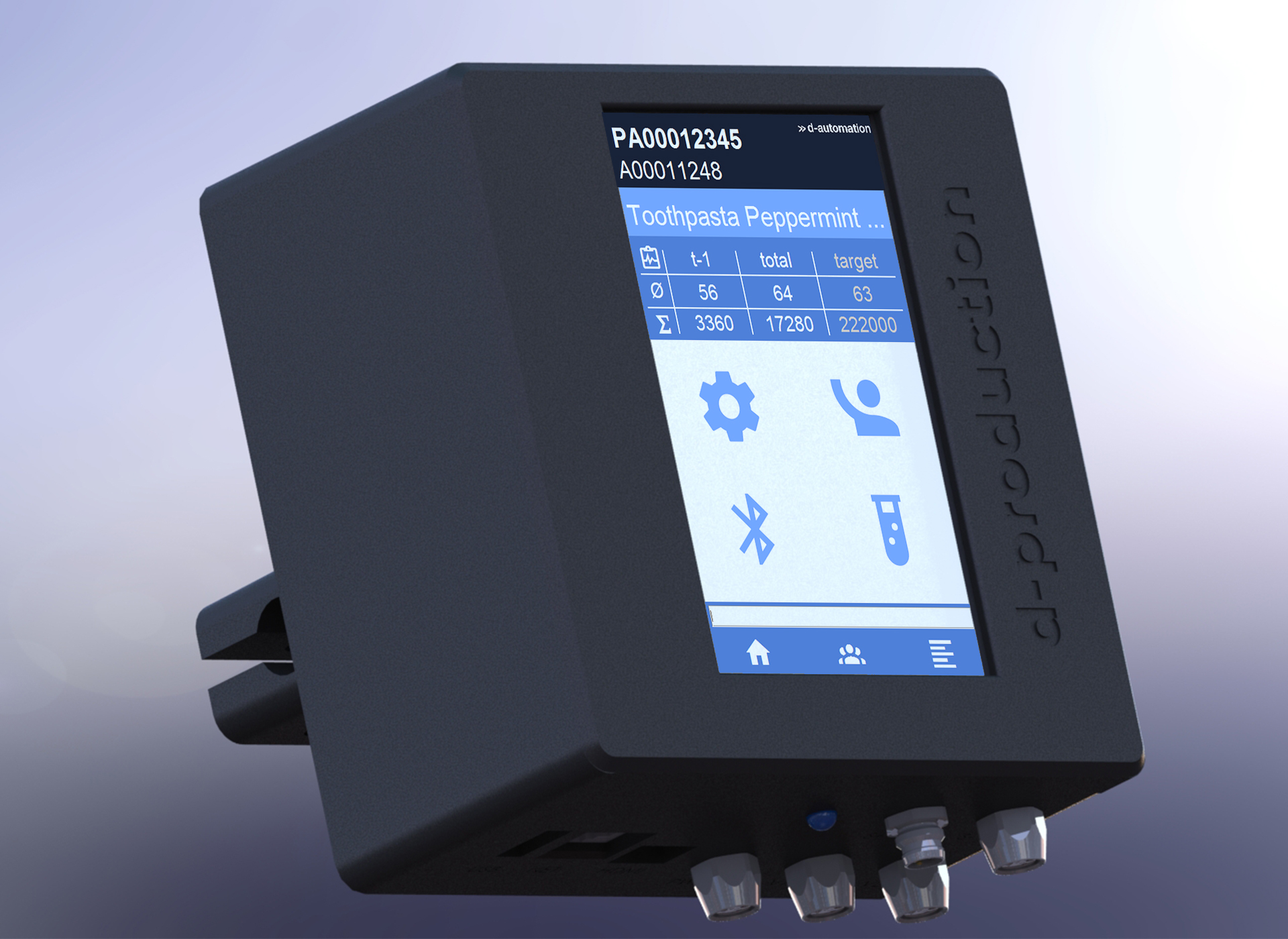

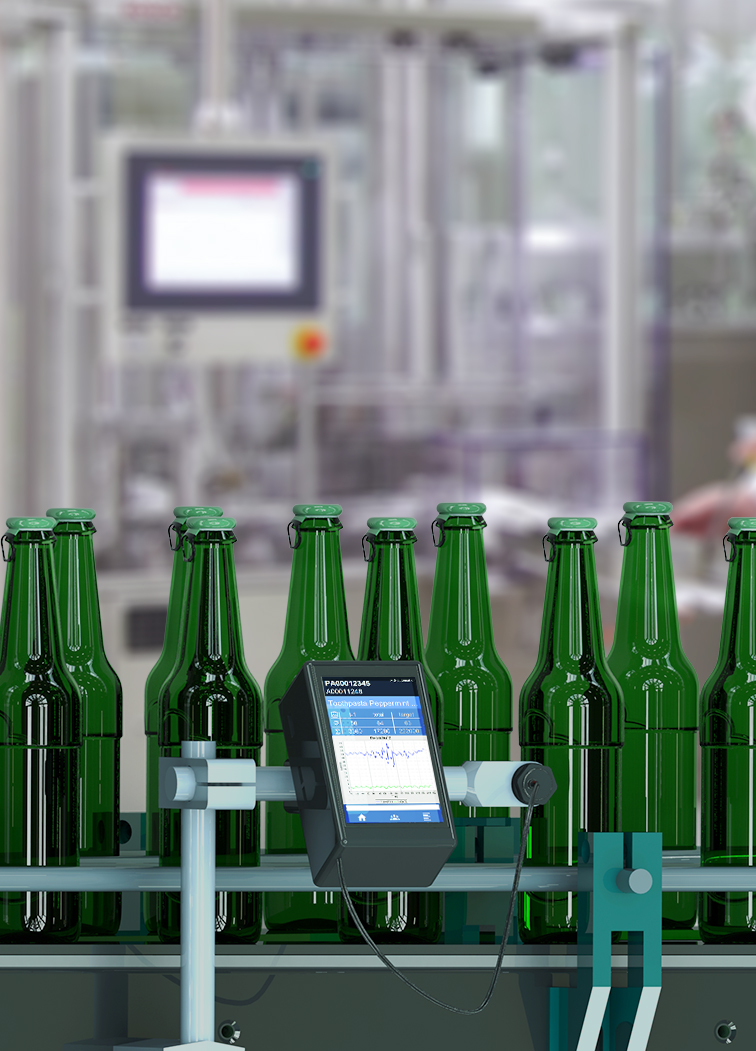

the d-production hardware we supply will be mounted directly to your current manufacturing line. The unit is a fully customized PCB which enables you a plug-and-play functionality.

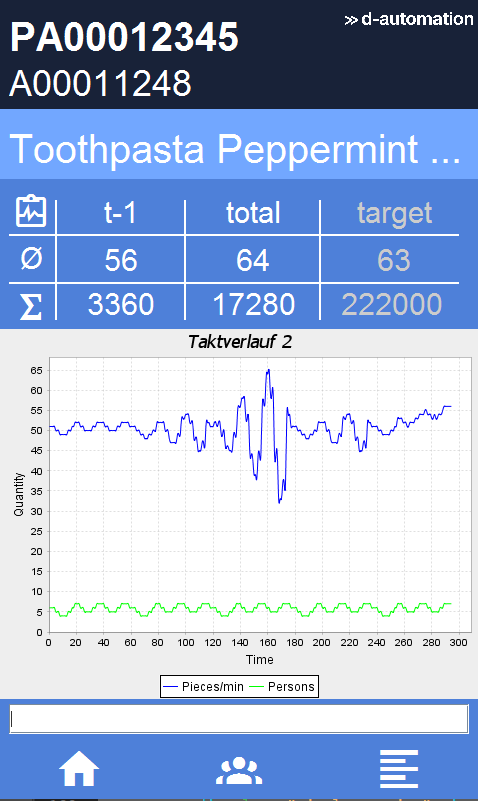

A 64bit Octacore CPU ensures sufficient computing power to run an artificial intelligence for predictive maintenance. Equipped with a 4.3 INCH (~10cm) capacitive multi-touch Hi-Res Display you can track the current output rate, historical output rates, employees logged to the line, special instructions to the production order as well as the current quantity finished directly at the display on the line. Alternatively, you can plug in any standard HDMI Screen up to 65" (inch) to the HDMI Port so you could easily add any standard screen for a larger view.

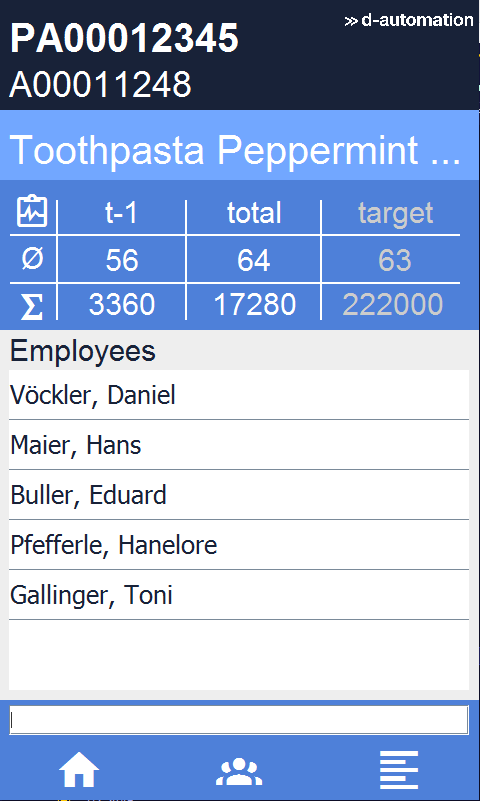

Equipped with an RFID-Tag-Reader you can use your current RFID-Tags to assign your Employees to the line automatically.



Hardware Specifications

• Bluetooth 4.1 Module (HS Low Energy (BLE)) for easy connection to barcode readers
• Custom Software to connect to the Database
• >1.4 GHz 64bit Octa-Core (8 Core) CPU
• 1Gb DDR3 RAM
• Gigabit Ethernet RJ45 Port
• HDMI micro 1.4 Output
• 1x USB 2.0 Type A

Dimensions

• about height 130mm
• about width 130mm
• about depth 90mm

---
